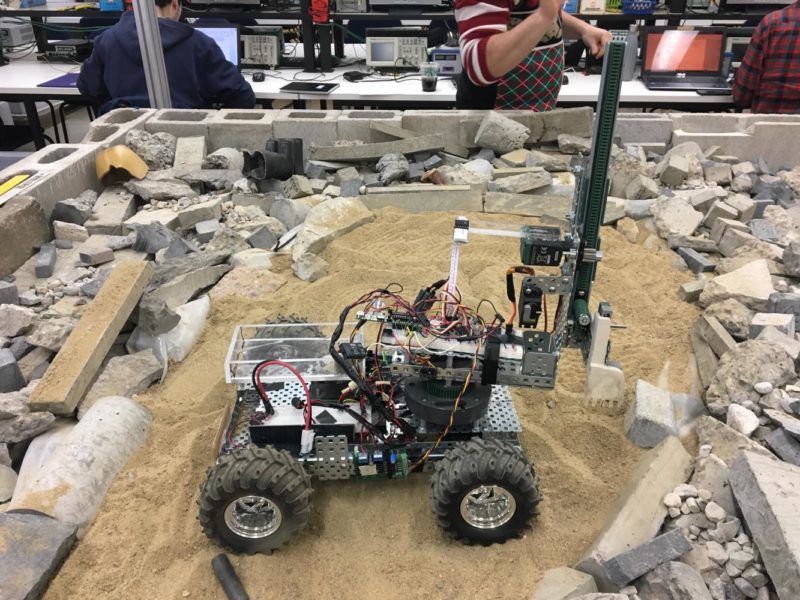

Robot prototype on track

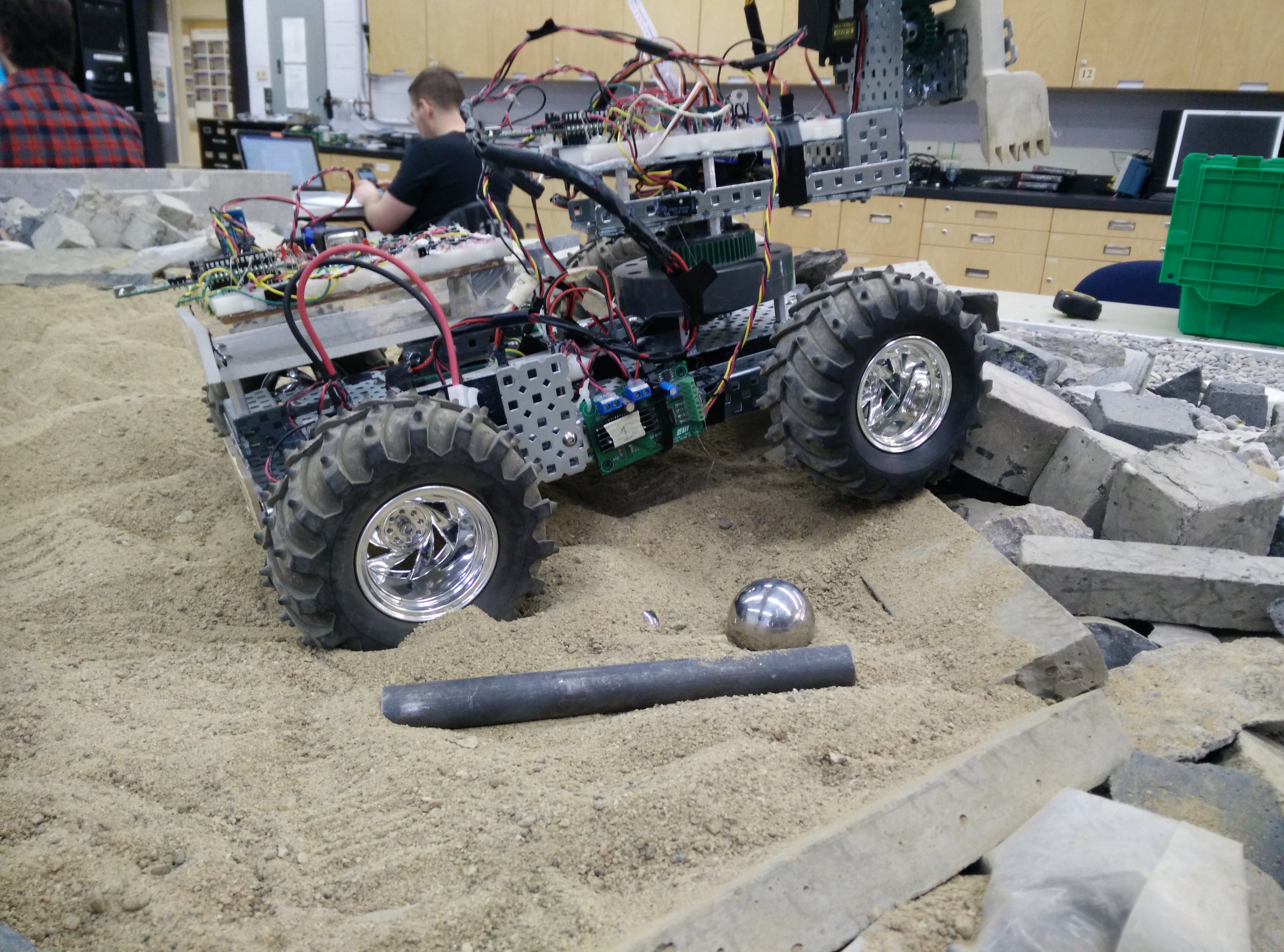

Robot prototype on track | Side Profile

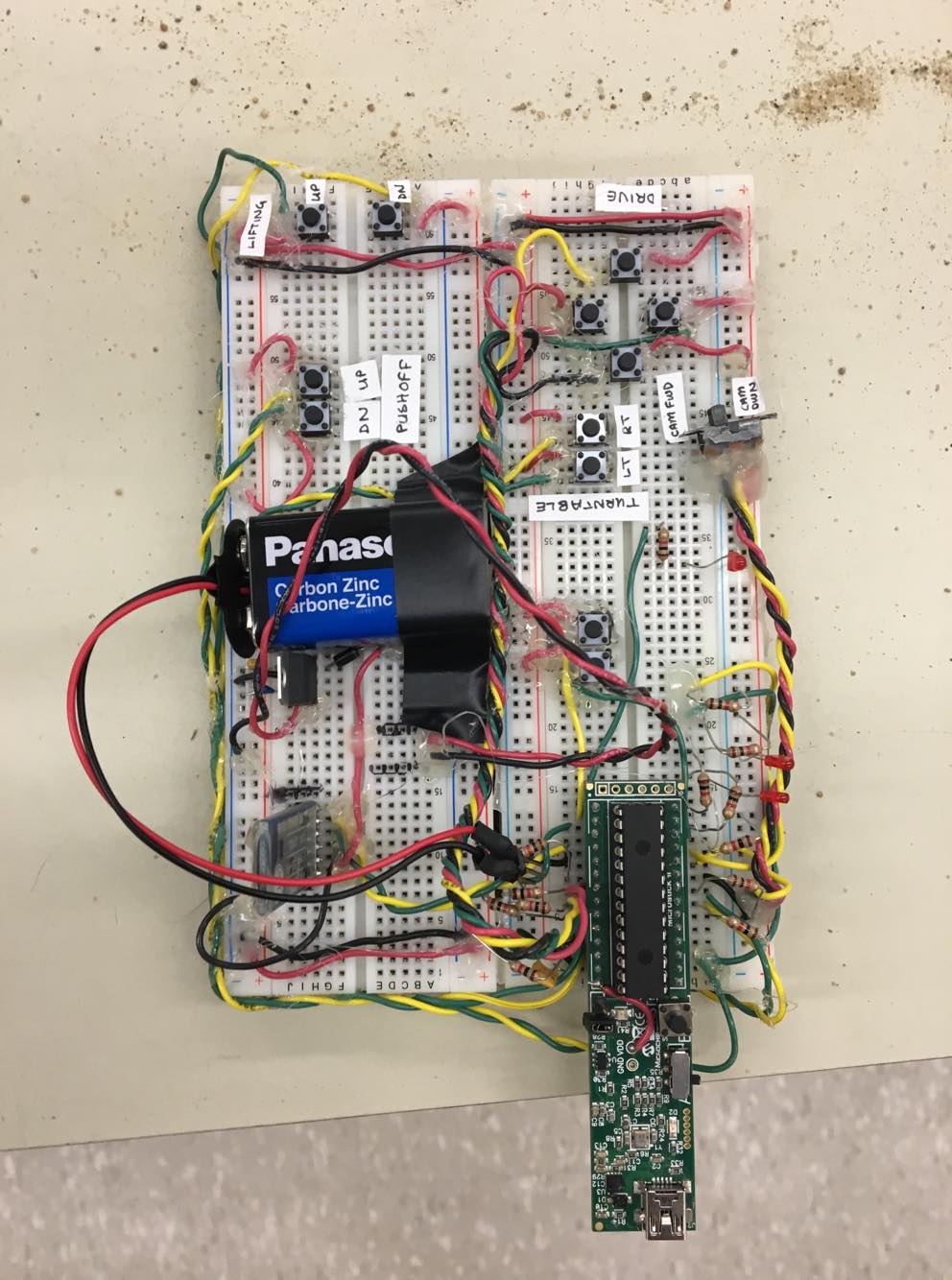

Bluetooth Controller

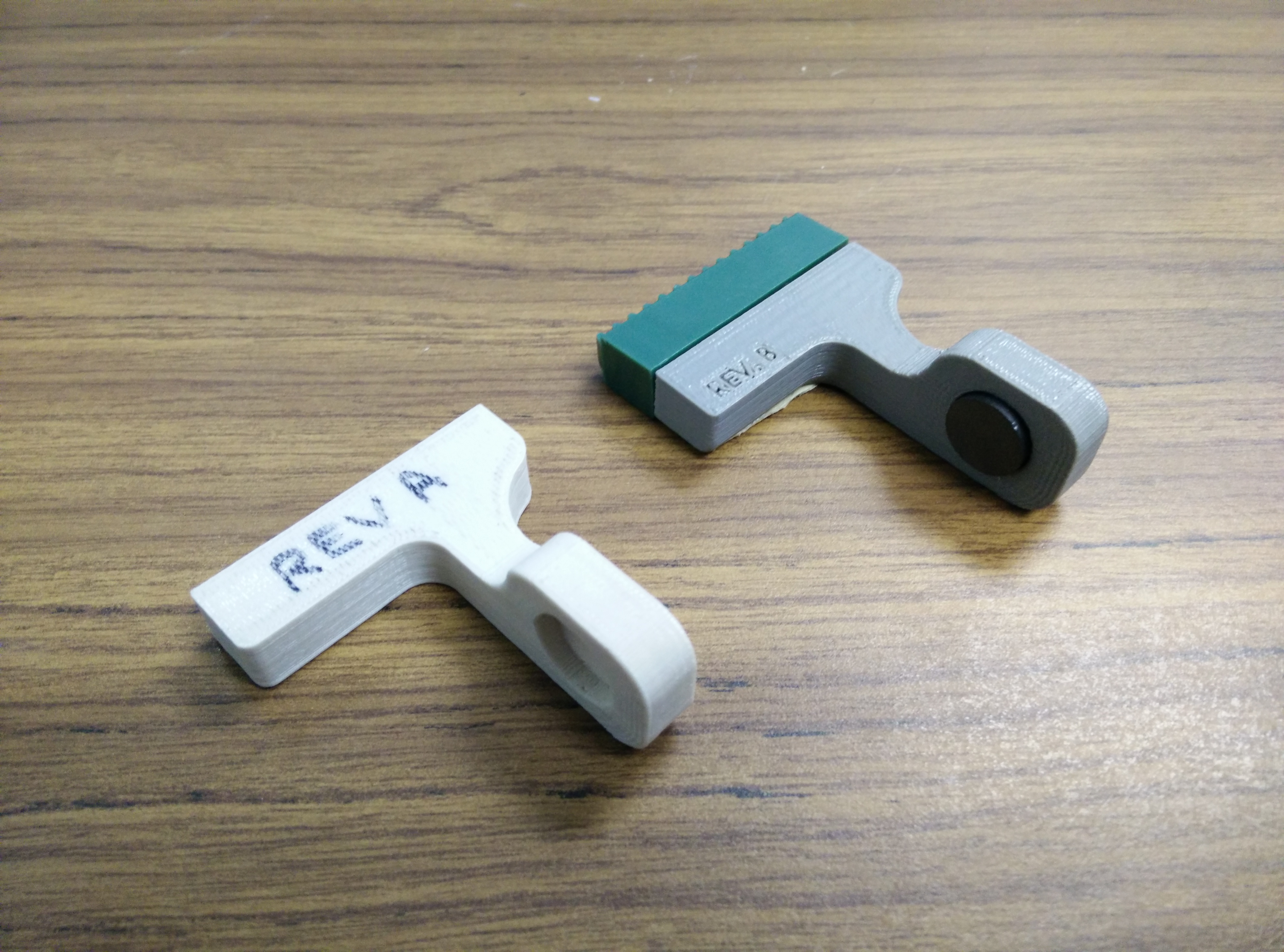

3D Print of GRIP-002 | Comparisons of Rev A. and Rev B.

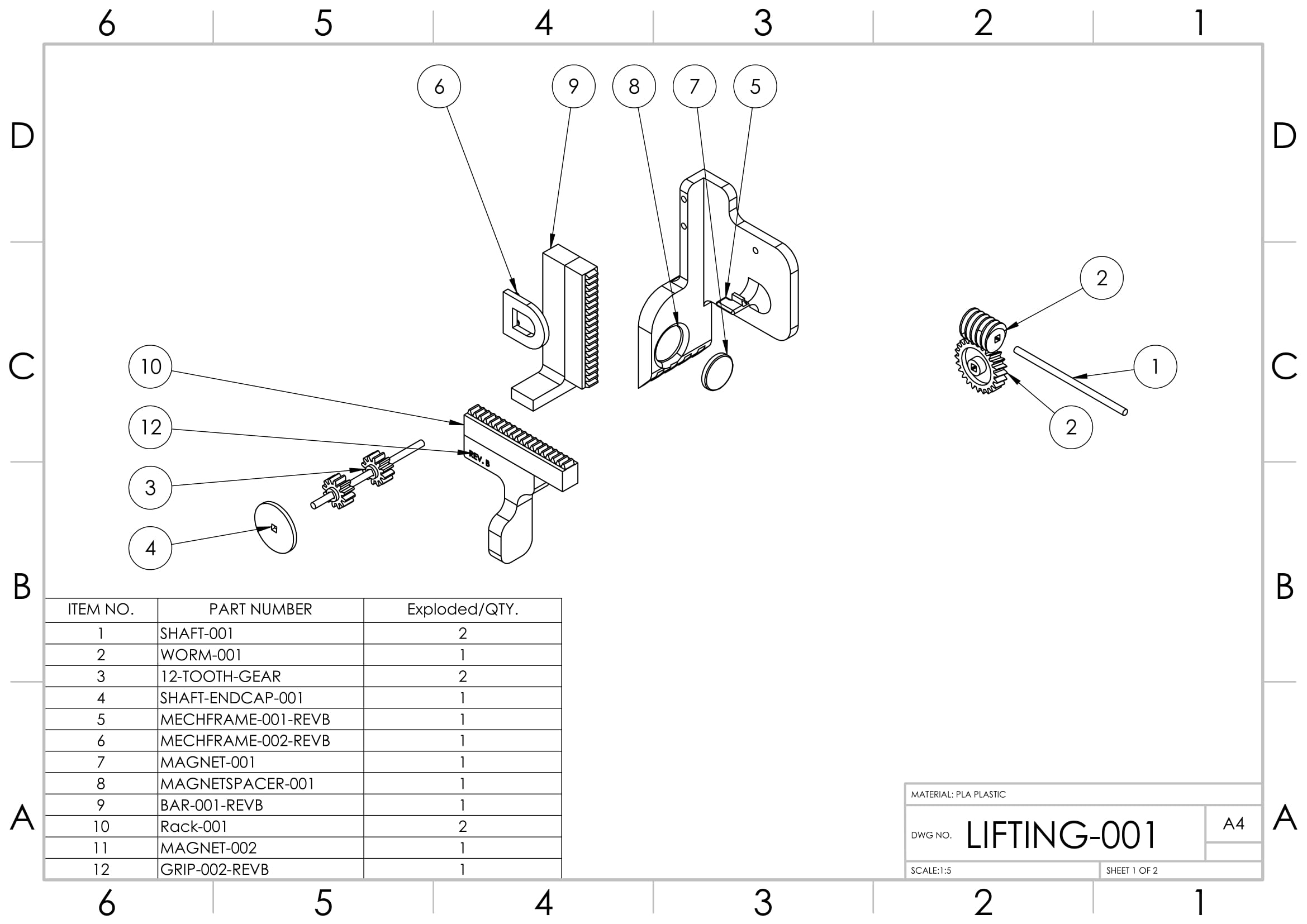

Exploded View Drawing | LIFTING-001-1

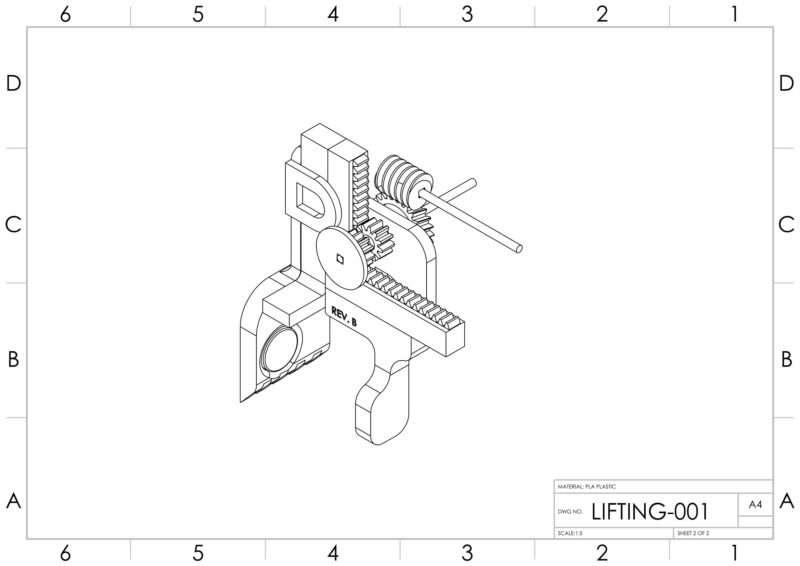

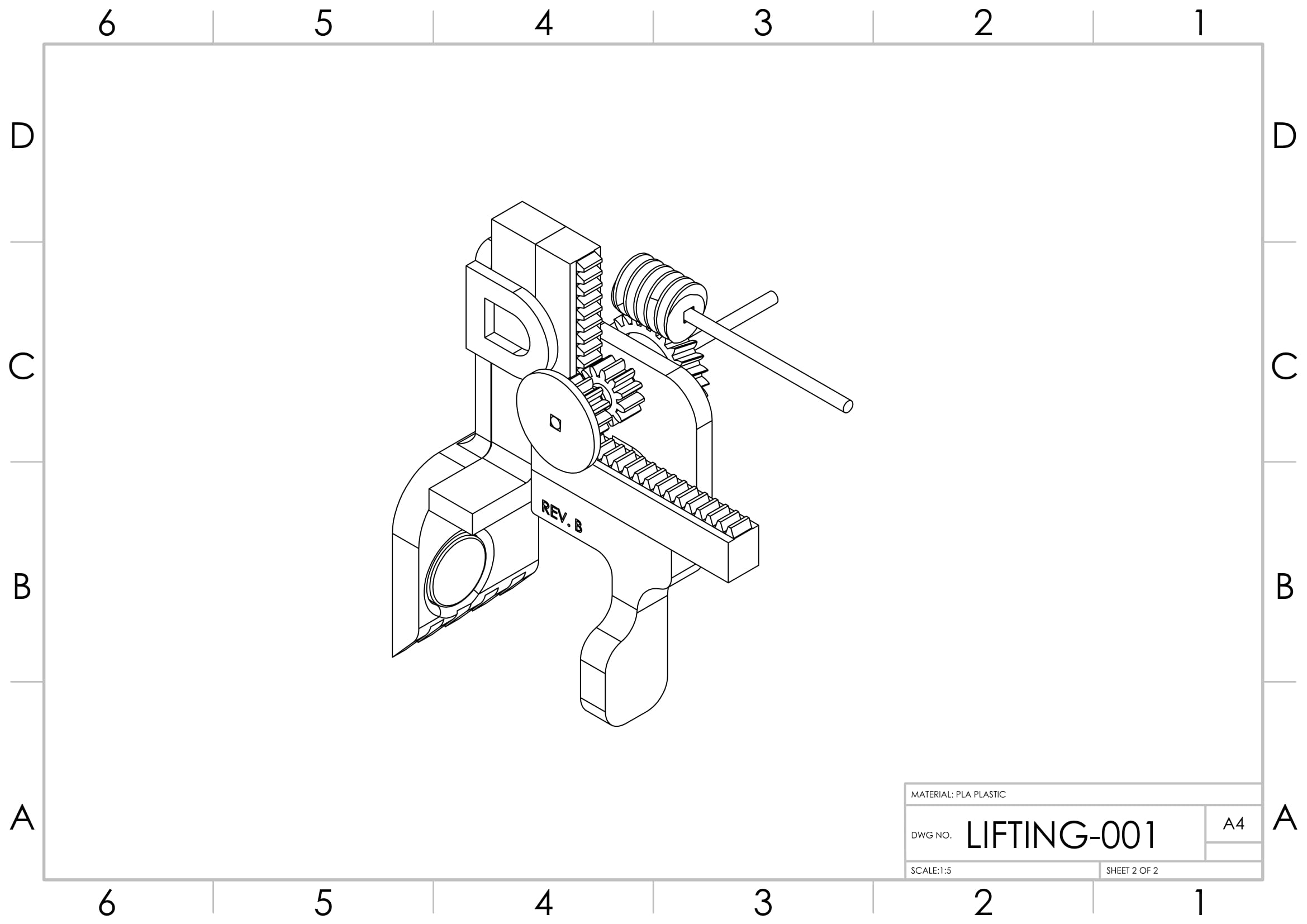

Assembly View Drawing | LIFTING-001-1

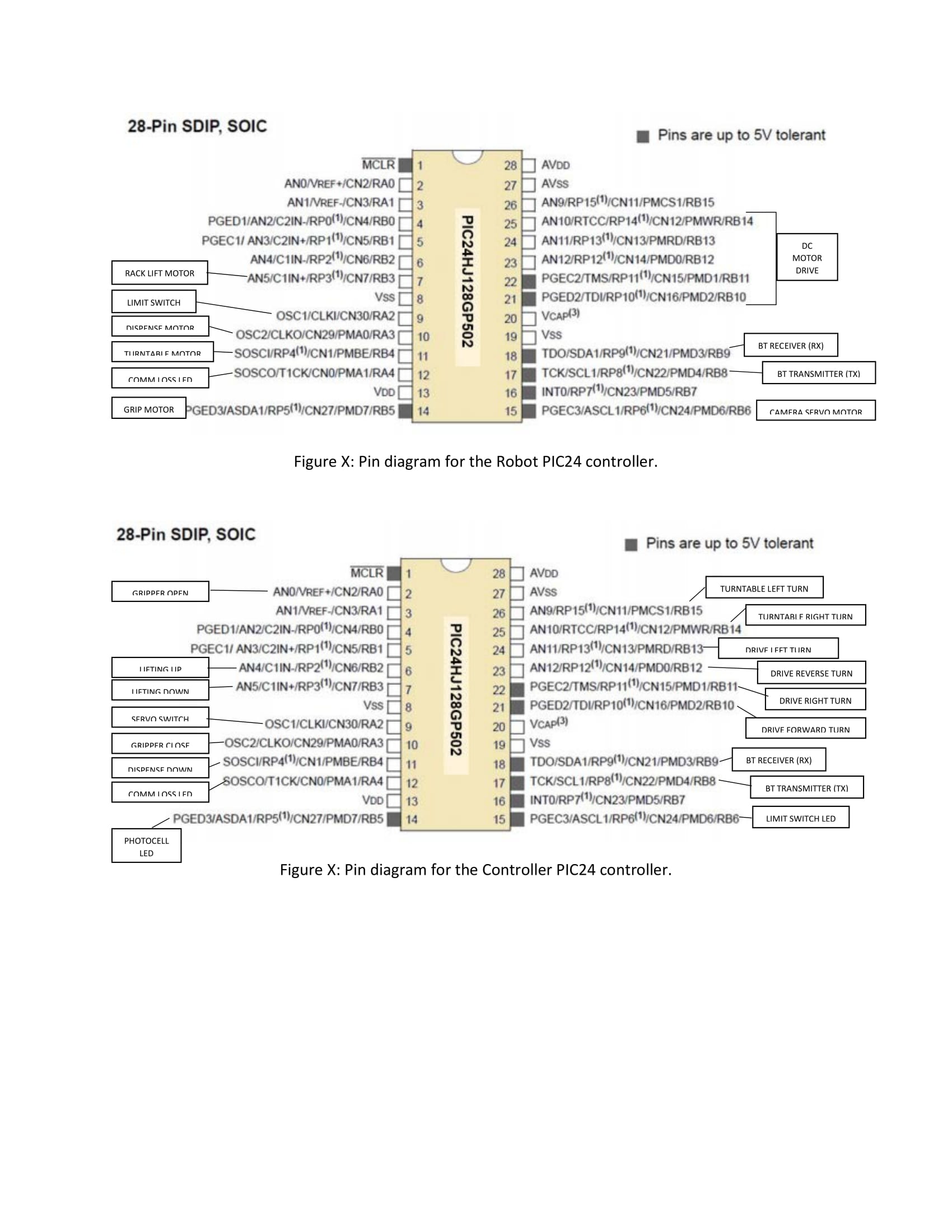

PIC Micro Pin Layout
As part of an academic course, designed a prototype of a semi-autonomous robot to extract radioactive material from a debris zone. The objective was to traverse a simulated mining site, search for and extract items of interest, and deposit them outside the site in a safe zone.
A wireless comm system was developed using a PIC24H microcontroller and a Bluetooth HC-05 couple. Drive system and chassis were built using a combination of VEX system components and 3D printed components. Any custom components were designed on SolidWorks.
Control logic was kept simple, with a focus on reliability. The final prototype functioned well, successfully meeting engineering requirements.
